Tripod Turnstile

  • BLS-T302 RFID Access control tripod turnstile
  • BLS-T302 RFID Access control tripod turnstile
  • BLS-T302 RFID Access control tripod turnstile
BLS-T302 RFID Access control tripod turnstile BLS-T302 RFID Access control tripod turnstile BLS-T302 RFID Access control tripod turnstile

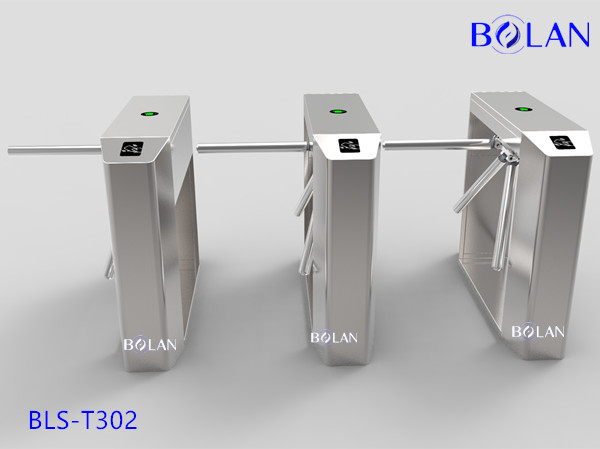

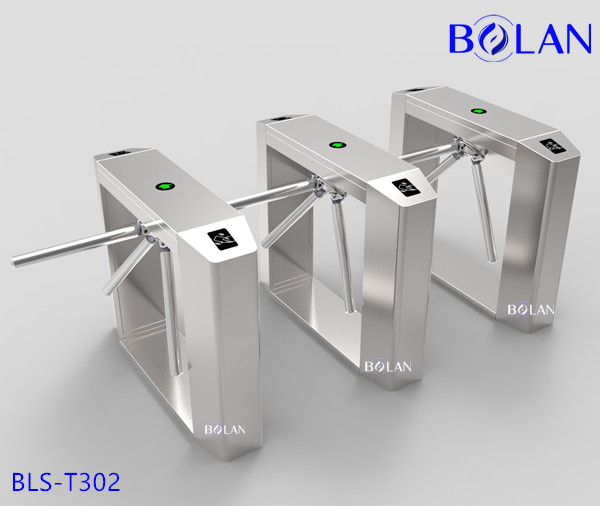

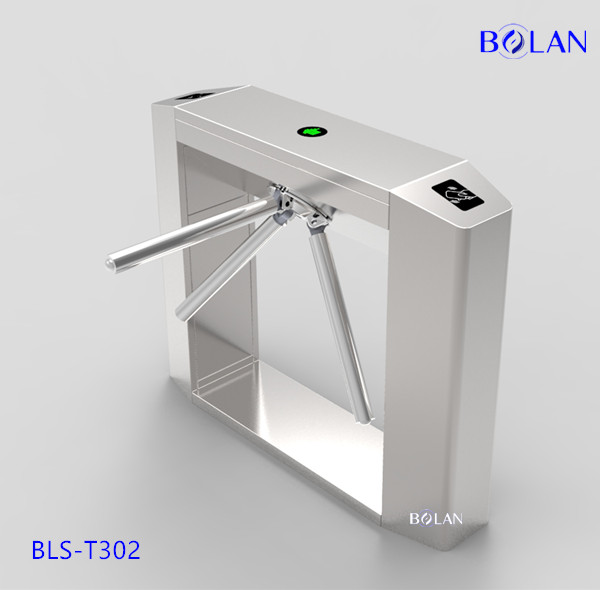

BLS-T302 RFID Access control tripod turnstile

  • Product description: Our RFID access control tripod turnstile is basic turnstiles for indoor or outdoor, it’s the most widely used turnstiles. The characteristics of our RFID access control tripod turnstile is easy instal
  • INQUIRY

RFID ACCESS CONTROL TRIPOD TURNSTILE PARAMETER

1.Size: 1200x280x980mm

2.Unlock time: 0.2s

3.Pass rate: 35 person/min

4.Pass width: ≤550mm

5.Input: 100V~240V

6.Motor voltage: 24v

7.Environment: -25~+70

8.Power consumption: 30w



IN GERNAL

• Semi-auto mode:After reading card the passenger pushes the arm by hand until he goes through the barriers and the arm arrives in home position.

• Full-auto mode:The passenger pushes the arm at a little strength after reading card,and the arm will automatically rotate forward by motor power until the arm arrives in home position.

• Pure mechanical modeThe passenger pushes the arm by hand until he goes through the barriers.

• Use IC cards,ID cards, Bar code or magnetic cards, fingerprint, face recognition, temperature, token etc automatic identification system and achieve access, time attendance to manage

• Direction indicator, showed that pedestrian access to the current status, and guide pedestrians correct and smooth passage

• Single or bi-directional function in mechanical and electrical versions.

• Automatic reset of barrier arms after each passage.

• Cable or wireless remote control panel key override control for emergency situations.

• Automatically arm drop down when power off or emergency.

• Adjustable time out to delay.

RFID ACCESS CONTROL TRIPOD TURNSTILE OPERATING MODES:

• Single direction single passage

• Bi-direction single passage

• Free passage in single direction

• Free passage in bi-direction(for emergency)

• Always free or locked(for emergency)



RFID ACCESS CONTROL TRIPOD TURNSTILE MATERIALS:

• Housing- steel and powder coating with lacquered(color optional), or in stainless steel AISI 304 or AISI316.

Turn plate- Aluminium alloy, arms- stainless steel AISI 304 or AISI316.

• Card reader windows and indicator light-acrylic



PACKING AND SHIPPING:

• Separating arms and packing by Pearl foam first, drawing film, crate or wooden case(optional)

• Express(DHL, TNT, Fedex, EMS, UPS etc)

• By air(from Mainland or Hong Kong)

• By sea (from Shenzhen)

• Railway(China-Central Asia freight trains, China-Europe freight train )
