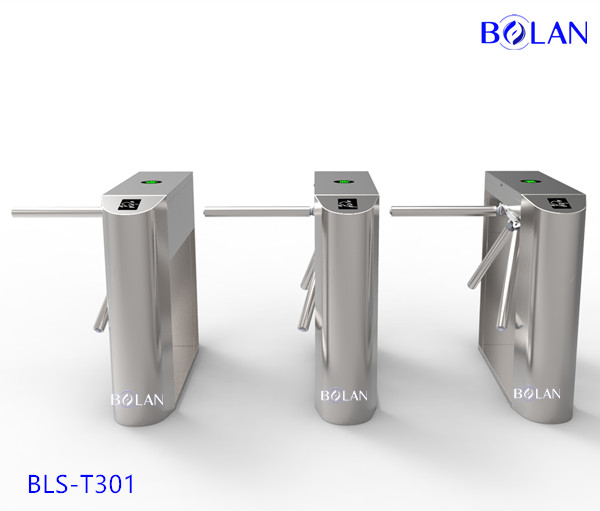

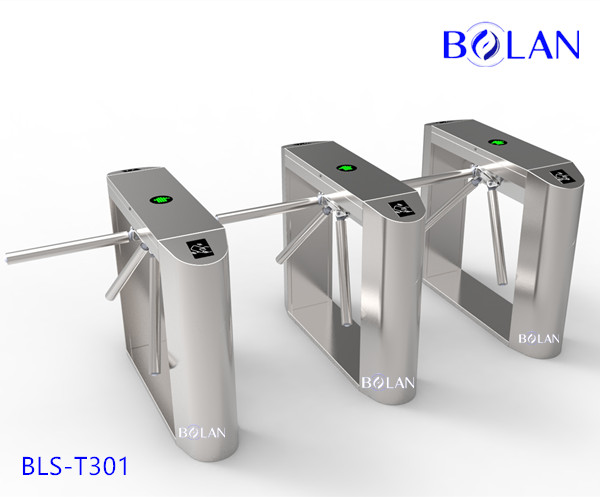

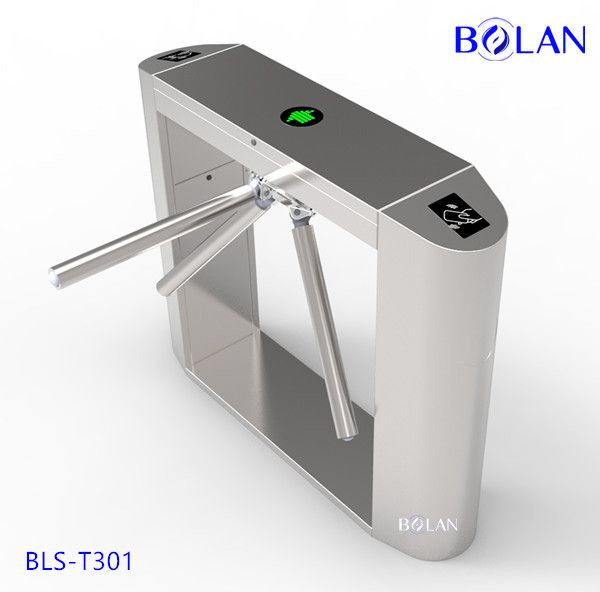

BLS-T301 tripod turnstile

CONTROLLER

• Semi-auto mode:After reading card the passenger pushes the arm by hand until he goes through the barriers and the arm arrives in home position.

• Full-auto mode:The passenger pushes the arm at a little strength after reading card,and the arm will automatically rotate forward by motor power until the arm arrives in home position.

• Pure mechanical mode： The passenger pushes the arm by hand until he goes through the barriers.

• Single or bi-directional function in mechanical and electrical versions.

• Automatic reset of barrier arms after each passage.

• Cable or wireless remote control panel key override control for emergency situations. Automatically arm drop down when power off or emergency.

• Adjustable time out delay.

OPERATING MODES

• Single passage in the set direction

• Bi-directional single passage

• Free passage in the set direction

• Always free or locked

MATERIALS

• Housing:Made in metal sheet and painted with 20/IO, or in stainless steel AISI 304 or AISI316.

• Barrier swings-Plastic plate, toughened glass, stainless steel frame.

• Lid(optional)--stainless steel or artificial stone(black/brown)

COLOURS&FINISHES

• High quality powder coating plus lacquered finish

• Dark grey colour high quality powder coating plus lacquered finish

• Sandpaper powder coating with pearl mica effect
