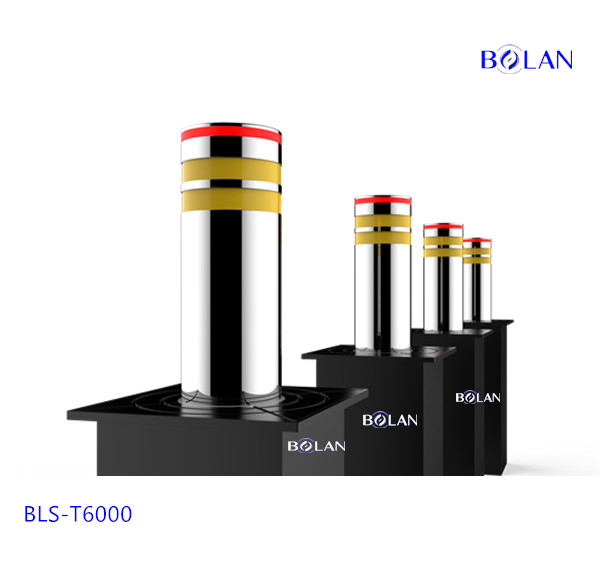

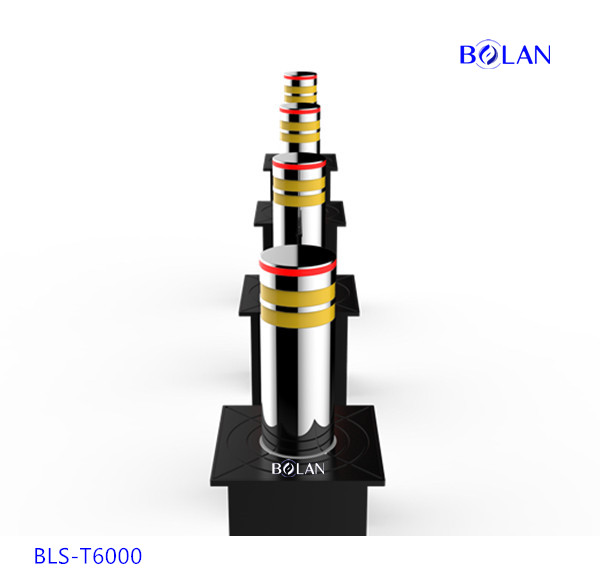

BLS- T6000 Electronic Hydraulic Rising Bollard

ELECTRONIC HYDRAULIC RISING BOLLARD PARAMETER:

1.System：hydraulic system

2.Max passing pressure：Can pass 80-120 tons of container trucks

3.Voltage：AC220V 50Hz Integrated /AC380V Split

4.Power(w)：350W Integrated/3.75KW Split

5、Up time：≤3-4S Adjustable

6、Down time：≤3-4S Adjustable

7、Working temperature：-35℃~75℃

8、Storage Environment ：-10℃~65℃, Water-proof  Damp-proof,Dust-proof.

9、Material ：304 stainless steel

10、Rising height：600mm

11、Standard Thickness：6   8、10、12、15、30mm（optional）.

12、Diameter：168、219、273mm(optional）

13、Casing size：430*430*1130mm/500*500*900mm

14、Structure ：With load-bearing steel beam column, anti-collision steel beam column, 4 navigation rod

15、Integrated electrical mechanism ：stroke 600mm,Cylinder outer diameter 60mm,Rod diameter:16mm.

16、6k Mirror tube

17、With LED （Acrylic light circle）

18、Reflective sticker :2 strips

19、Gang-control interface

20、In case of a power outage, the bollards can be manually lowered

22、IP rate：IP68

23、Weight:200±KG Integrated/150±kg Split

24、In rising and falling,reversible operation is available

25、Device running noise≤60decibel

26、Waterproof integrated hydraulic device drive

27、The hydraulic cylinder is double sealed to ensure a waterproof rating

28、Hydraulic drive comes with hydraulic lock

29、PLC programming command control system

30、220VIntegrated/380V Split power supply

31、Solenoid valve voltage 24V

32、Remote control distance 50M-100M（Based on the environment）

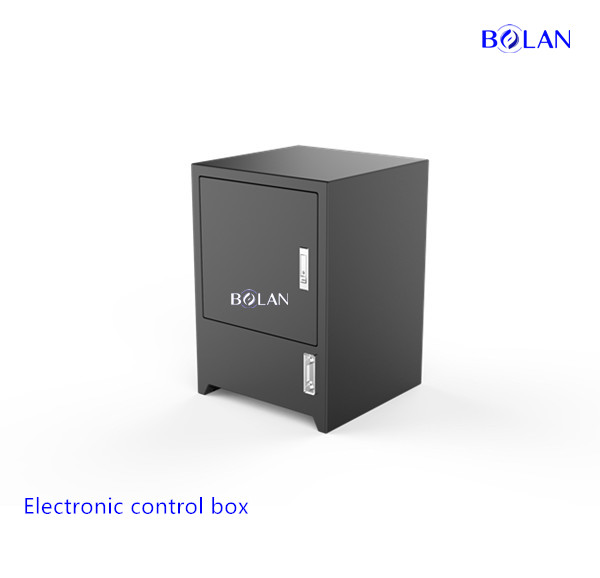

33、The control box displays text adjustable（Up，Down，Action，Time control adjustment）

34、Text display with Chinese and English bilingual

35、PLC built-in encryption system

PACKING AND SHIPPING:

• Packing by Pearl foam first, drawing film, crate or wooden case(optional)

• By air(from Mainland or Hong Kong)

• By sea (from Shenzhen)

• Railway(China-Central Asia freight trains, China-Europe freight train )
