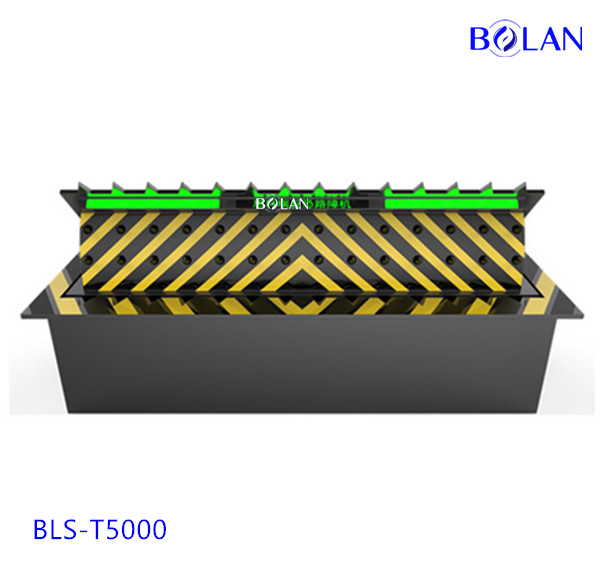

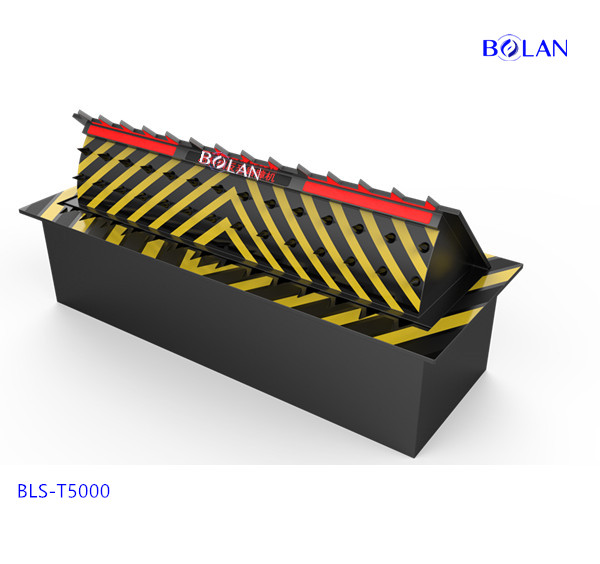

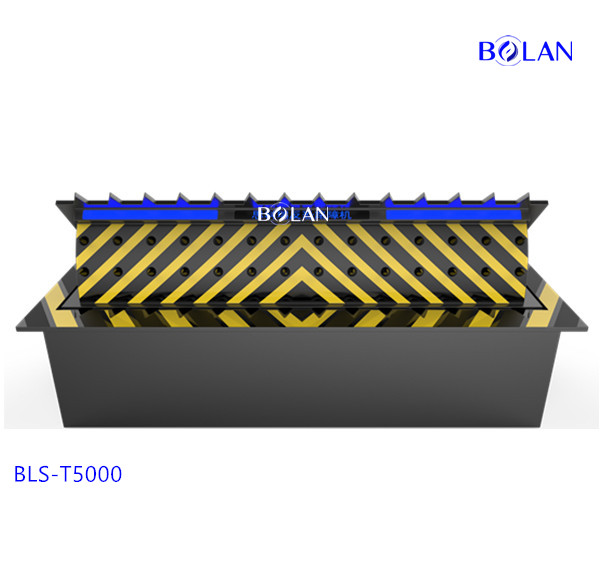

BLS- T5000 Anti-terrorist hydraulic road blocker

ANTI-TERRORIST HYDRAULIC ROAD BLOCKER PARAMETER:

1.System ：Hydraulic

2.Passing pressure：Can pass 120 tons of container trucks

3、Voltage ：3pahses 380（Control voltage 24V）。

4.System Dynamic power (w)：3.75KW。

5、Rising time ：≤1-3S（Adjustable）。

6、Lowering time ：≤1-3S （Adjustable）。

7、Working Temperature ：-35℃~75℃（suitable）。

8、Material thickness：16MM,20MM,25MM(Optional）

9、Material：A3 ，Spray anti-rust paint 。

10、Color：Various

11、Weight:1.5T

12、IP rate：IP68

13、The roadblock has a buffer function

14、Buffer time：0.2-0.5

15、LED light with red,blue,green,yellow,purple,white color ，and there is anti-terrorist sign

17、Gang-control interface

18、In case of a power outage, the roadblocks can be manually raised and lowered。

19、Reliable structure, heavy duty load, smooth action, low noise.

20、Remote control distance ：50-100m（According to the environment）

22、In rising and falling,reversible operation is available .

23、Device running noise≤60decibel

24.The hydraulic cylinder is double sealed to ensure a waterproof rating

25、Hydraulic drive comes with hydraulic lock

26、Welding cylinder

27、PLC programming command control system

28、Control solenoid valve 24V

29、Lifting solenoid valve 24V

30、The control box displays text adjustable（Up，Down，Action，Time control adjustment）

31、Text display with Chinese and English bilingual

32、PLC built-in encryption system

33. Text display LCD display, Chinese menu, precision start time setting

 34、Heavy duty hydraulic cylinders ：HOB63-200CA+I Stroke200  Heavy duty Industrial Level

35、Double dynamic double oil pump 2.3ML/time

36、Oil container:60liter

37、Hydraulic oil hose：PT international interface ，1/2 Double wire high pressure hose

PACKING AND SHIPPING:

• Packing by Pearl foam first, drawing film, crate or wooden case(optional)

• By air(from Mainland or Hong Kong)

• By sea (from Shenzhen)

• Railway(China-Central Asia freight trains, China-Europe freight train )
