High Speed Gate

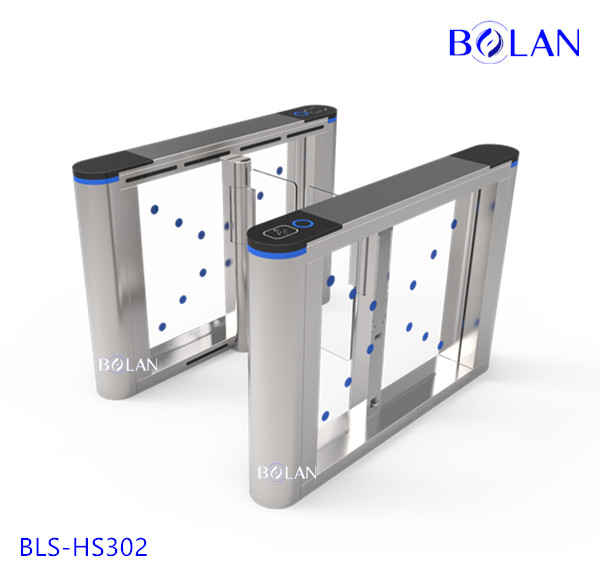

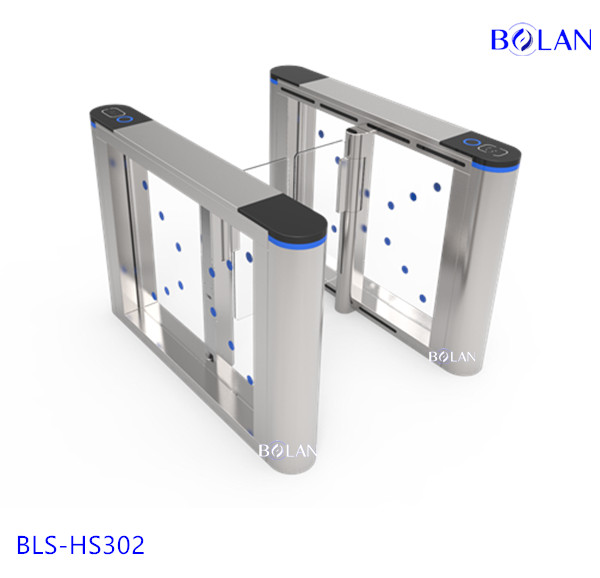

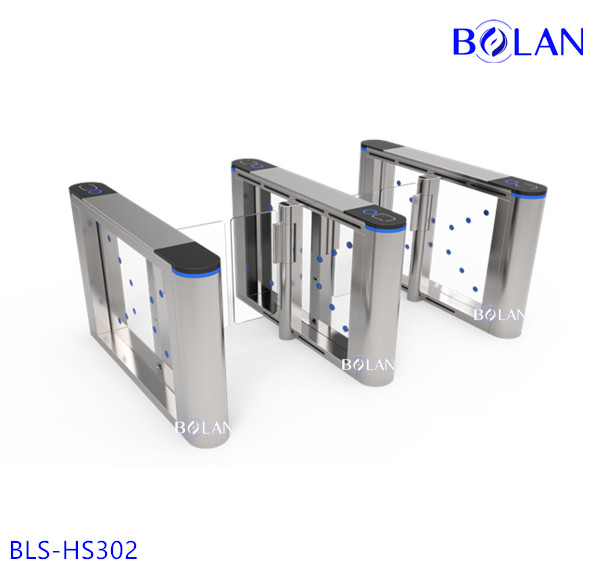

BLS-HS302 Hot sale speed gate turnstile

Product description: Our hot sale speed gate turnstile is one kind of high-end turnstile gates for indoor, because of the high speed operation, generally it's used at high-end indoor and large flow people place, like offi
INQUIRY

HOT SALE SPEED GATE TURNSTILE PARAMETER:

1.Size（single）：1400x185x1020mm;

Size（double）：1400x276x1020mm;

2.Unlock time: 0.2s ;

3.Pass rate: 35 person/min;

4.Pass width:≤900mm;

5.Input : 100V~240V;

6.Motor voltage: 24v;

7.Environment: -25~+70;

8.Power consumption:150w;

9.Input: 12v dry contact;

10. Materials: 304 stainless steel and Acrylic;

11.Gross weight:single:70kg double:90kg;

12.Package size: single:1450x260x1180mm; double: 1450x360x1180mm

IN GERNAL:

Speed gate is an automatic motorized stainless steel speed gate,it has smallest installation footprint while offering widest opening clearance to allow big boxes, trolley, wheelchair, baby stroller or user with big luggage to pass through with comfort.

Speed gate compact size and tubular shape allow it to easily fit into places with very limited space. Access control and time attendance reader can be integrated into top cover.

Speed gate control system mechanism is modular for easy maintenance servicing and part replacement.

Speed gate is typically used together with flap barrier or turnstile as manual lane for handicapped user in building lobby. Ideal for high end areas.

• Use IC cards,ID cards, Bar code or magnetic cards, fingerprint, face recognition, temperature, token etc automatic identification system and achieve access, time attendance to manage

• Direction indicator, showed that pedestrian access to the current status, and guide pedestrians correct and smooth passage

• Display has been in using for statistics and numbers

• With voice and strobe light alerts

• A combination of infrared sensors and alarm anti-illegal entry into pedestrian access, the protection of pedestrians and the prevention of the following

• Double anti-trapping function,photocell anti-trapping and mechanical anti-trapping

• Auto re-set function, if no passing during identified card-reading time,the system will reset automatically the passengers are prohibited to pass until their second identified reading

• The barrier can be set to delay closing in 1-60s after a valid card-reading, or bar code scanning, fingerprint scanning etc

HOT SALE SPEED GATE TURNSTILE FEATURES:

ALARM BUZZER DETECTION FOR UNAUTHORIZED USAGE
Alarm buzzer function will be triggered when the user is passing thru without authorization , tailgating or incorrect direction.
ELEGANT DESIGN
Slim form factor, premium stainless steel and glass panel material with elegant arc design effectively help create an welcoming and elegant prestigious atmosphere at building entrance to impress your visitors.
DOUBLE SAFETY
Door will automatically reverse once safety IR detected obstacle or when a small force is detected blocking its motion. This dual detection feature is to prevent injury caused by door hitting people.
EASY INTEGRATION
A push button or access control reader can be used to trigger the swing barrier to open via simple dry contact signal. After delay timer elapsed, swing barrier will automatically close back by itself.
MINIMUM MAINTENANCE
Using brush-less DC motor eliminate the need of changing carbon brush thus reducing maintenance work. Key internal parts is treated with anti-rust and anti-septic to ensure long term reliability.
EMERGENCY RECOVERY
During power failure, swing barrier will automatically open for free pass through. This will fast escape in the event of emergency. When the power resume, swing barrier will automatically close back.
