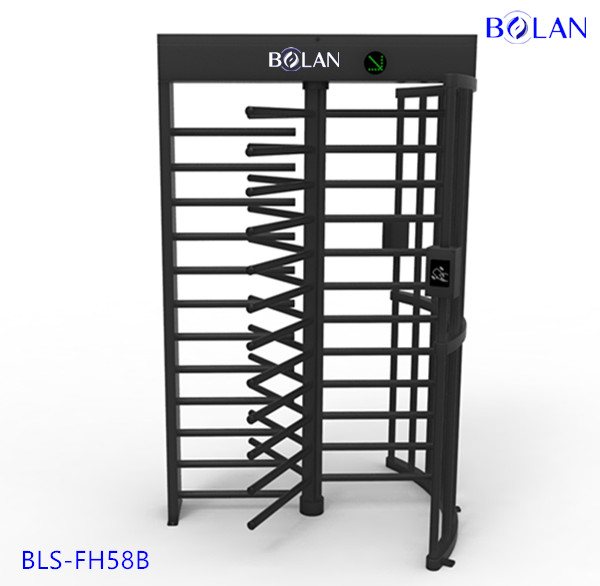

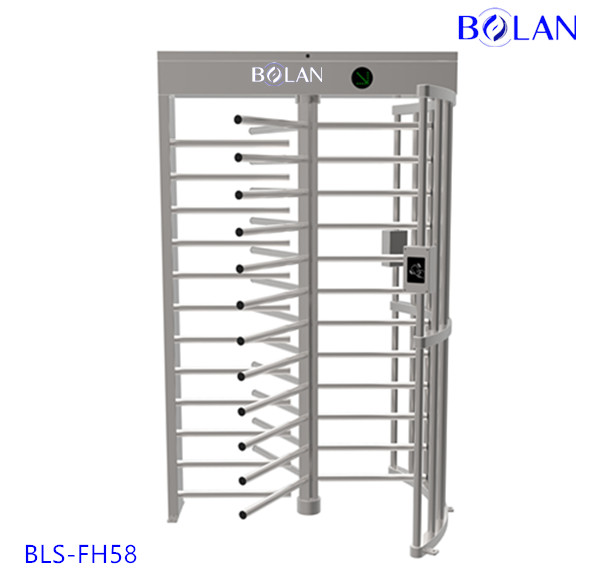

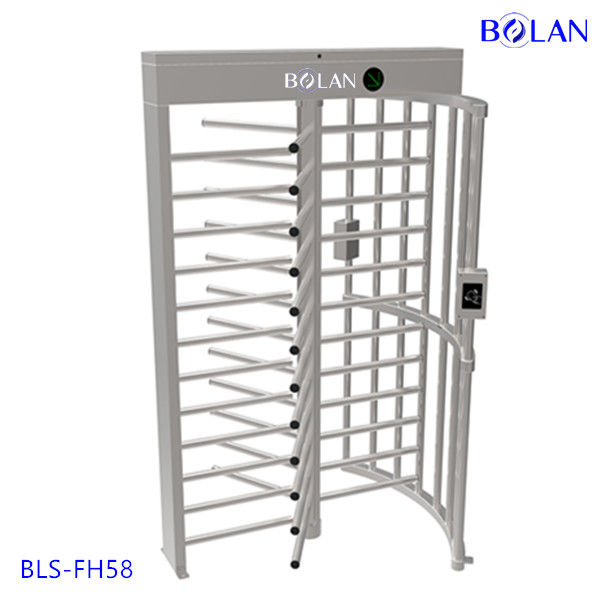

BLS-FH58 Single entrance full height turnstile gate

FULL HEIGHT TURNSTILE GATE PARAMETER:

1.Size: 1630x1500x2310mm
2.Unlock time: 0.2s
3.Pass rate: 30 person/min
4.Pass width: ≤650mm
5.Input: 100V~240V
6.Motor voltage: 24v
7.Environment: -25~+70
8.Power consumption: 30w

IN GENERAL:

• Use IC cards,ID cards, Bar code or magnetic cards, fingerprint, face recognition, temperature, token etc automatic identification system and achieve access, time attendance to manage

• Direction indicator, showed that pedestrian access to the current status, and guide pedestrians correct and smooth passage

• Display has been in using for statistics and numbers

• Electrical controls for both directions

• Automatic reset of barrier wings after each passage

• Push button switch override controls for emergency situations

• Cable or wireless remote control

• Indoor and outdoor application

• Heavy-duty high precision mechanism Nickel Plated for high corrosion resistance

• Mechanism designed not to lock at 45°

• Modular assembly provides convenience for installation or moving full height turnstile

• Easy operation of electronic control modules

• Modular plug-in electronics provides for easy and quick repairs and maintenance

• Programmable electronic selections i.e. Auto re-lock after a predetermined time if no action is detected

• Power failure options-unit remains locked or unlocked during power fail mode

• On board counter unit standard-retrievable by hand held module

• Remote mounting of control electronics possible

• A Self centering mechanism to ensure complete rotation of the head to the rest position

• An anti backup device prevents reverse rotation once the head has moved 30 degree from its rest position

• A hydraulic damper to ensure smooth and quiet operation

OPERATING MODES:

• Single direction single passage

• Bi-direction single passage

• Free passage in single direction

• Free passage in bi-direction(for emergency)

• Always free or locked(for emergency)

FULL HEIGHT TURNSTILE GATE MATERIALS:

• Housing- steel and powder coating with lacquered(color optional), or in stainless steel AISI 304 or AISI316.

• Crossing-steel and powder coating with lacquered(color optional), or in stainless steel AISI 304 or AISI316.

• Card reader windows and indicator light-acrylic

PACKING AND SHIPPING:

• Separating for four parts and packing by Pearl foam first, drawing film, crate or wooden case(optional)

• Express(DHL, TNT, Fedex, EMS, UPS etc)

• By air(from Mainland or HongKong)

• By sea (from Shenzhen)

• Railway(China-Central Asia freight trains, China-Europe freight train )
