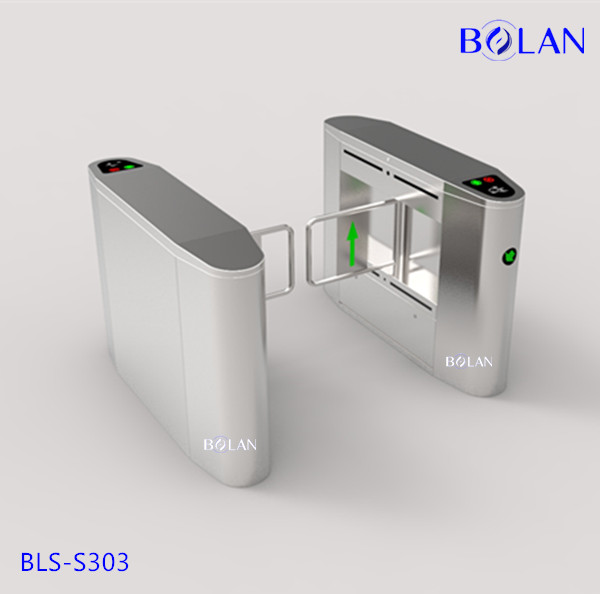

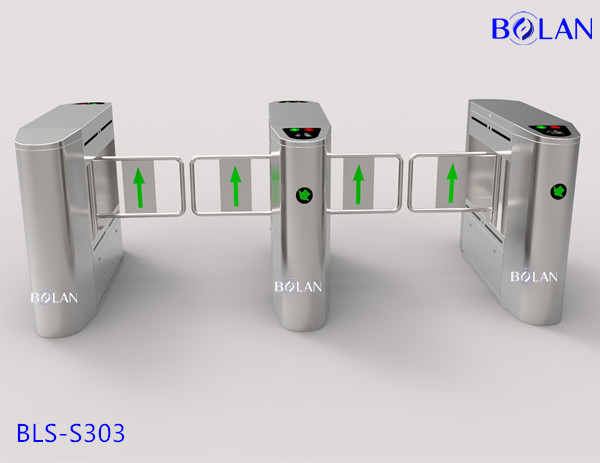

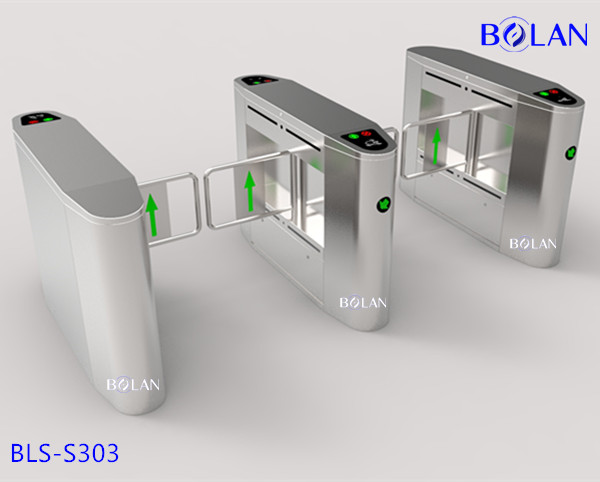

BLS-S303 Stainless steel swing gate turnstile

STAINLESS STEEL SWING GATE TURNSTILE PARAMETER:

1.Size: 1400x280x980mm;

2.Unlock time: 0.2s

3.Pass rate: 35 person/min

4.Pass width: ≤1100mm

5.Input: 100V~240V

6.Motor voltage: 24v

7.Environment: -25~+70

8.Power consumption: 35w

IN GENERAL:

• Use IC cards,ID cards, Bar code or magnetic cards, fingerprint, face recognition, temperature, token etc automatic identification system and achieve access, time attendance to manage

• Direction indicator, showed that pedestrian access to the current status, and guide pedestrians correct and smooth passage

• Display has been in using for statistics and numbers

• With voice and strobe light alerts

• A combination of infrared sensors and alarm anti-illegal entry into pedestrian access, the protection of pedestrians and the prevention of the following

• Double anti-trapping function,photocell anti-trapping and mechanical anti-trapping

• Auto re-set function, if no passing during identified card-reading time,the system will reset automatically the passengers are prohibited to pass until their second identified reading

• The swing barrier can be set to delay closing in 1-60s after a valid card-reading, or bar code scanning, fingerprint scanning etc

STAINLESS STEEL SWING GATE TURNSTILE OPERATING MODES:

• Single direction single passage

• Bi-direction single passage

• Free passage in single direction

• Free passage in bi-direction

• Always free or locked

STAINLESS STEEL SWING GATE TURNSTILE MATERIALS:

• Housing-Made in steel and powder coating with lacquered(color optional), or in stainless steel AISI 304 or AISI316.

• Barrier swings-Plastic plate, toughened glass, stainless steel frame.

• Lid(optional)-stainless steel or artificial stone(black/brown)

• Card reader window and indicator light-acrylic

PACKING AND SHIPPING:

• Separating arms and packing by Pearl foam first, drawing film, crate or wooden case(optional)

• Express(DHL, TNT, Fedex, EMS, UPS etc)

• By air(from Mainland or Hong Kong)

• By sea (from Shenzhen)

• Railway(China-Central Asia freight trains, China-Europe freight train )
